Cross Joint Connector Standard

Cross Joint Connector Standard

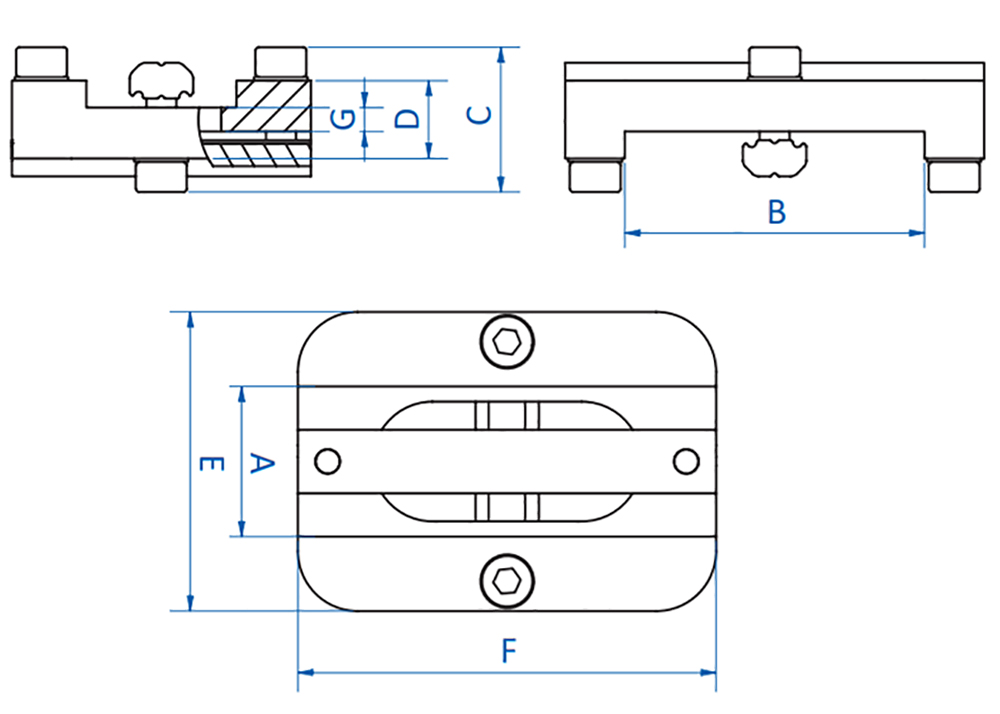

Cross Joint Connector Standard
A = 80
B = 80
C = 30
D = 12
E = 110
F = 110
G = 4

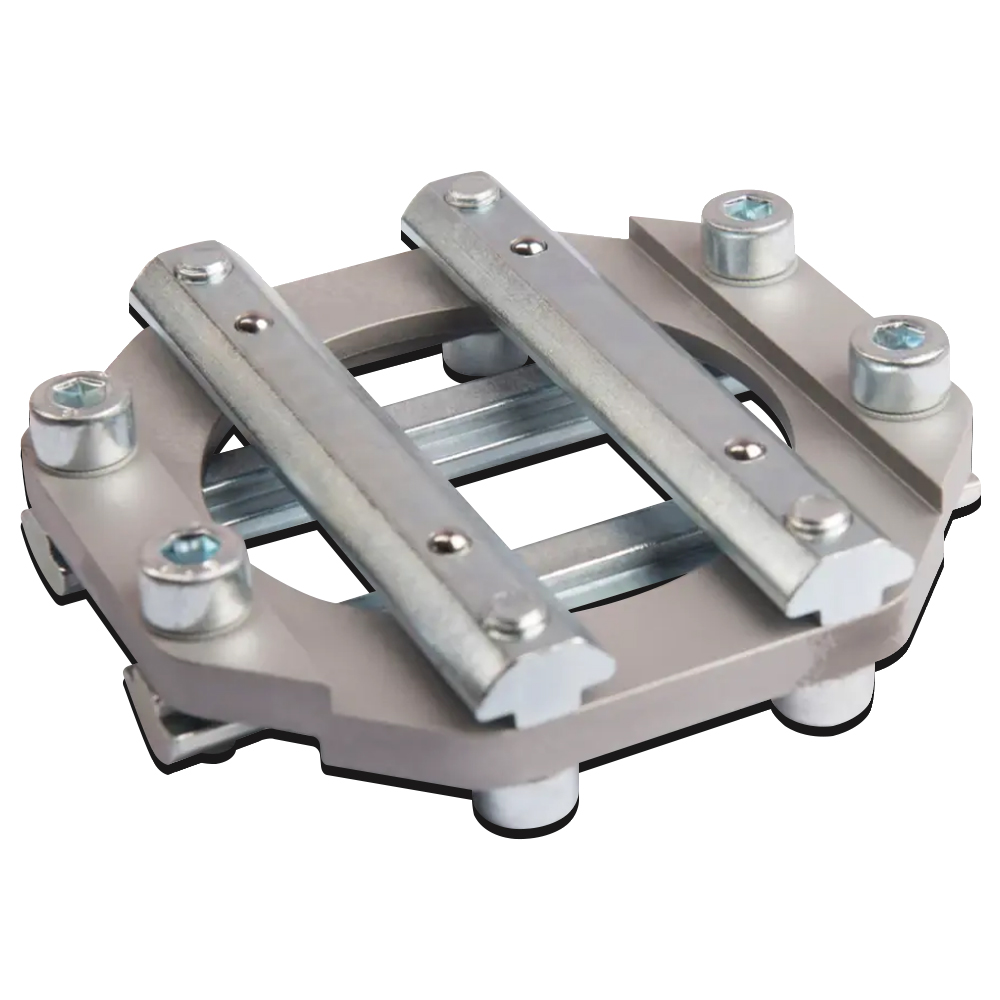

Cross Joint Connector Standard

80x80

    Suitable for: XLine
    For 90° connection of two extrusions
    Can be moved in four directions after screws are loosened

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: GR-XL01.022

For prices, apply for an account!
