Sprue Gripper - NPN Teachable
Sprue Gripper - NPN Teachable
Straight Jaws
Series 100
NPN Direct/indirect monitoring teachable
Grippers with strong gripping force and wide jaw opening for large gates
Tight closing for flat gates
Housings and gripper jaws consist of an anodized, high-strength aluminum alloy
Single-acting
- Operating Pressure: 2,5 bar
- Electric connection: 4-pin male M8 connector
- Sensor: NPN. Direct/indirect monitoring Teachable. two freely adjustable switching points
- Jaws: Standard
- Closing force at 6 bar (87 psi): 22.0 N
Ladda ner 3D Stepfil

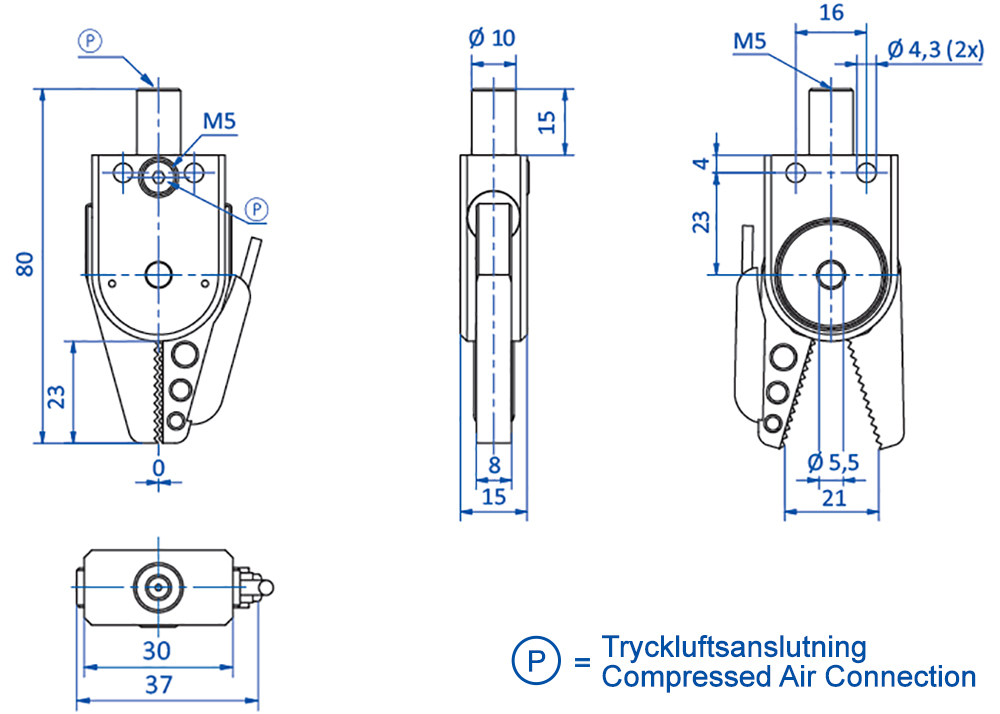

For 2D and information please see PDF
Art.nr: GR04.100-2N
Relaterade artiklar och tillbehör
Connecting Cable 4-pin M8-socket 90° angled
5 meters, open wire, PUR
Connecting Cable 4-pin M8-socket Straight
5 meters, open wire, PUR
Magnetic Sensor 2xNPN teach-In
M8-male 4-pin, NO, C-slot, Straight 0,5m
