Sprue Gripper
Sprue Gripper
NPN Sensor - Straight Jaws
Series 100
Grippers with strong gripping force and wide jaw opening for large gates
Tight closing for flat gates
Housings and gripper jaws consist of an anodized, high-strength aluminum alloy
Sensor for indirect monitoring; signal triggering if no component has been gripped
Single-acting
- Operating Pressure: 2,5 bar
- Electric connection: 3-pin male M8 connector
- Sensor: NPN. indirect monitoring
- Jaws: Standard
- Closing force at 6 bar (87 psi): 22.0 N
Ladda ner 3D Stepfil

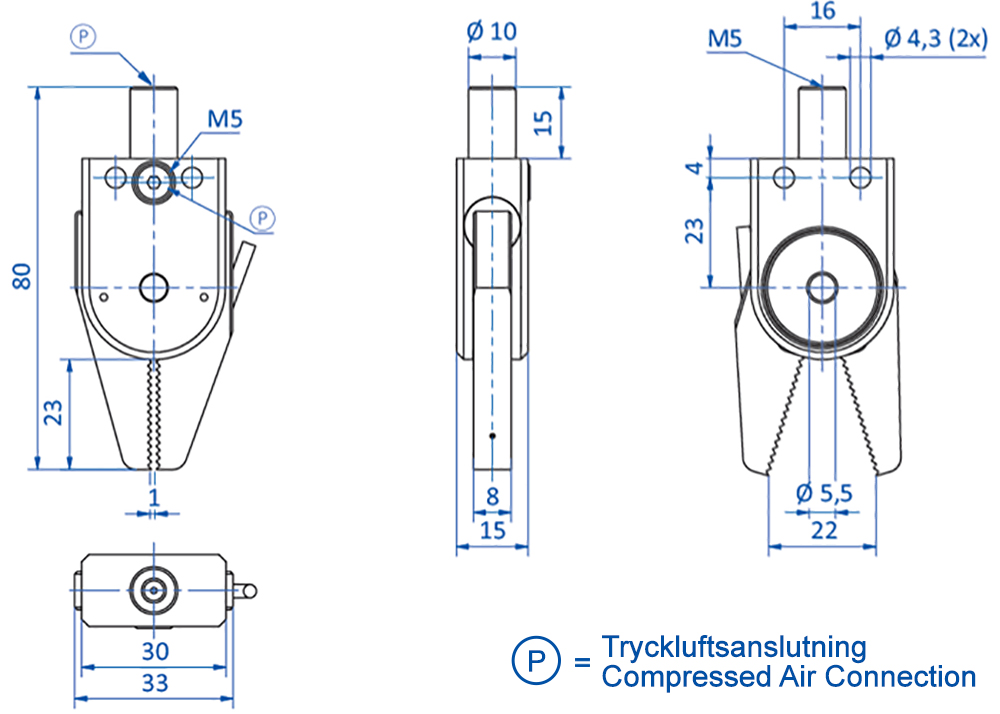

For 2D and information please see PDF
Art.nr: GR04.100-3N
Relaterade artiklar och tillbehör
Connecting Cable 3-pin M8-socket Straight
2 meters, open wire, PUR
Magnetic Sensor Short NPN M8-male 3-pin
NO, T-slot, Straight 0,15 meters
