Sprue Grip NPN Direct Monit.
Sprue Grip NPN Direct Monit.
Sawtooth Jaws Straight
Series 100
Grippers with strong gripping force and wide jaw opening for large gates
Tight closing for flat gates
Housings and gripper jaws consist of an anodized, high-strength aluminum alloy
Single-acting
- Operating Pressure: 2,5 bar
- Electric connection: 3-pin male M8 connector
- Sensor: NPN. direct monitoring. one freely adjustable switching point
- Jaws: Sawtooth profile for inclined gates
- Closing force at 6 bar (87 psi): 22.0 N
Ladda ner 3D Stepfil

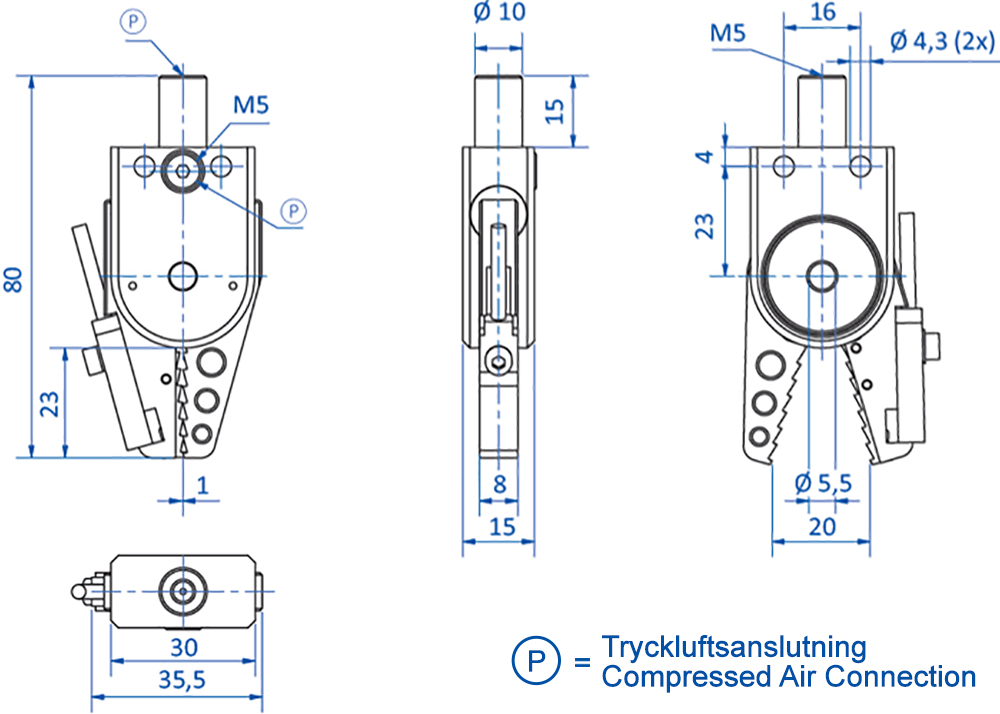

For 2D and information please see PDF
Art.nr: GR04.100S-1N
Relaterade artiklar och tillbehör
Connecting Cable 3-pin M8-socket Straight
2 meters, open wire, PUR
Inductive Sensor, NPN, M8-connector 3-pin
NO, T-slot, Rectangular, 0,2 meters
