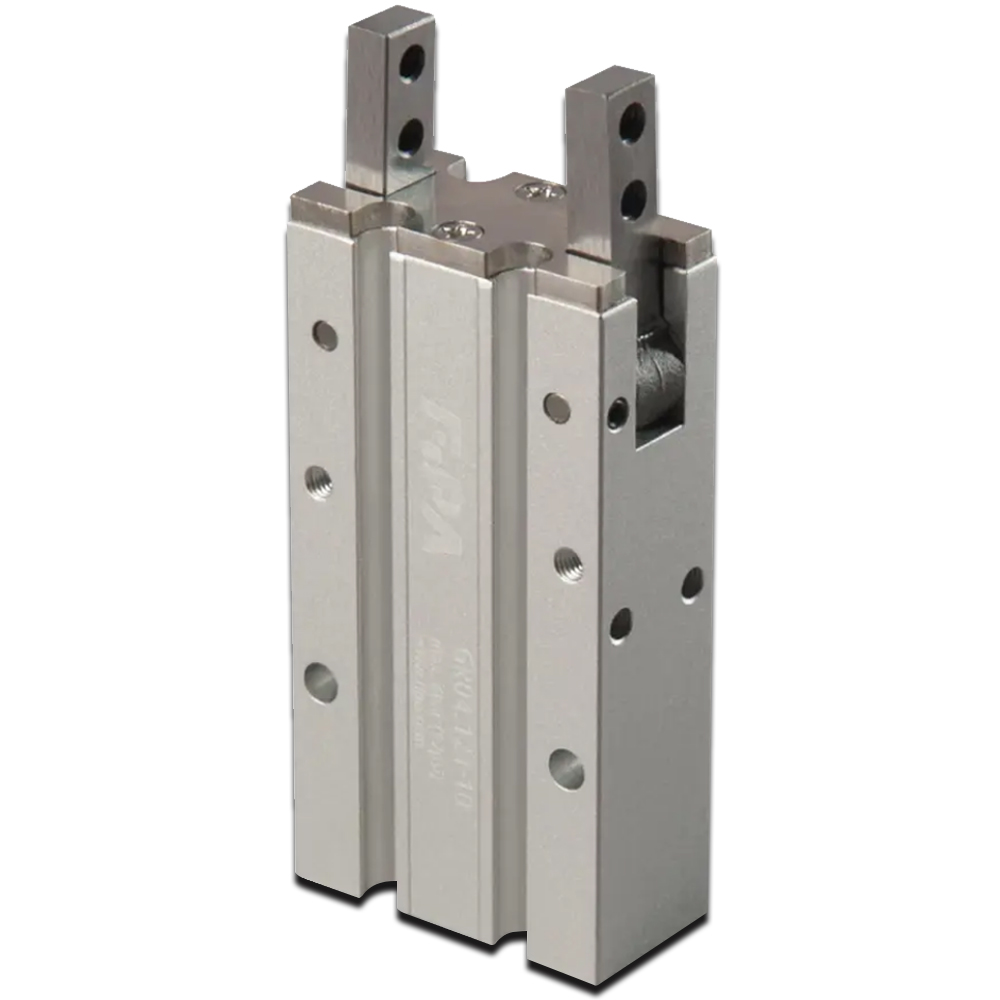

2 Fing. Ang. Grip. Piston Ø16
2 Fing. Ang. Grip. Piston Ø16
Grip. Movem. -3,0° to +180°
High gripping force with high gripping precision
Gripping of objects located behind large undercuts; clamping and assembly of parts
Suitable for dusty environments due to dust protection seals
Double-acting, short duty cycles
Body made of high-strength aluminum alloy, jaws are steel
- Versatile use with customized gripper jaws
- Operating Pressure: 1.0 bar
- Piston diameter: 16mm
- Angle stroke closed: -3.0°
- Angle stroke open: 180°
- Effective gripping torque: 0.54 Nm
Download 3D Step file
For 2D and information please see PDF
Item code: GR04.121-16
