Needle Gripper - Series 730
Needle Gripper - Series 730
Double-acting - Stroke 0-2mm
Small needle diameter for low entry depth, blow-off function for fast product release
Grippers with flat entry angle enables handling of thin or flat parts
Knurled screw for stroke adjustment to textile thickness Single-acting,
Compressed air connection for needle extraction, reset via return spring
Stroke corresponds to maximum entry depth of needles

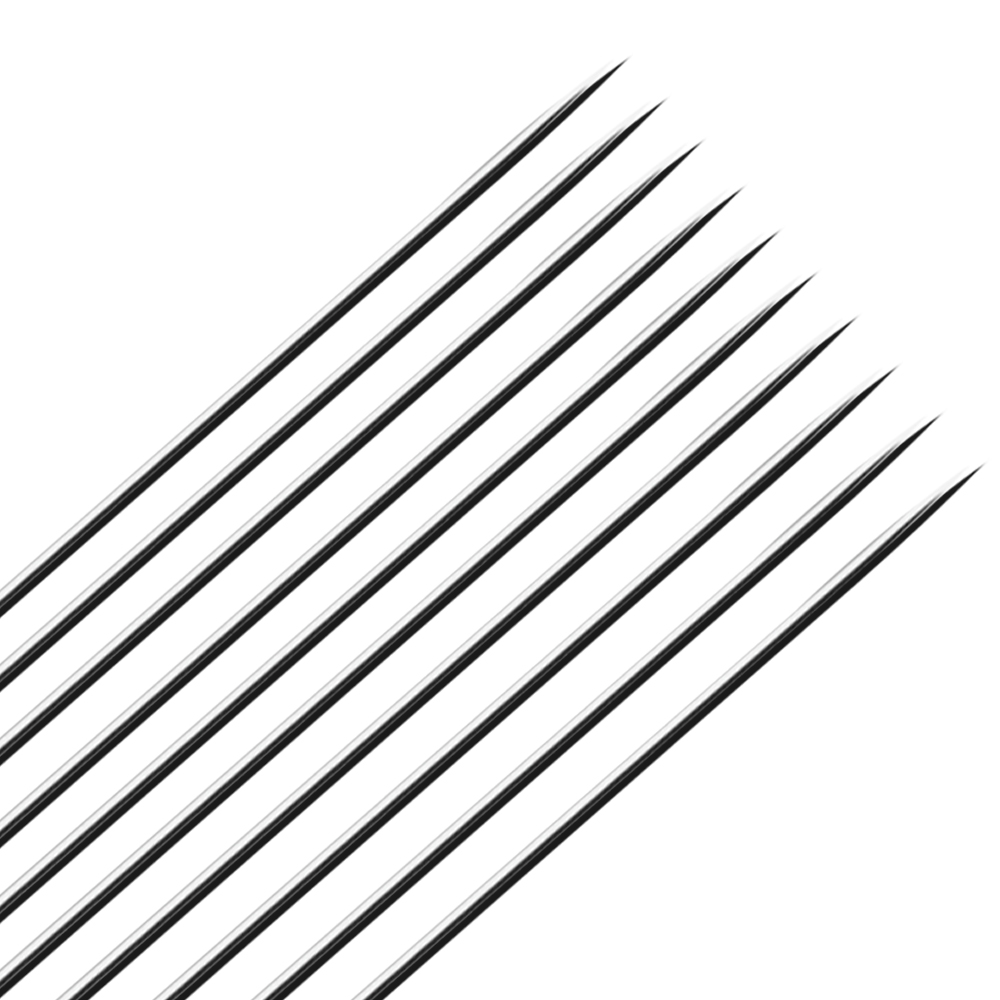

Spare needle plates available in category Fittings, Brackets and Accessories
- Stroke: 0-2mm
- Number of needles: 32
- Needle diameter: 0,7
- Infeed angle: 30°
- Operating Pressure: 4-7 bar (58 - 101,5 psi)
Ladda ner 3D Stepfil
For 2D and information please see PDF
Art.nr: GR04.730-20
Relaterade artiklar och tillbehör

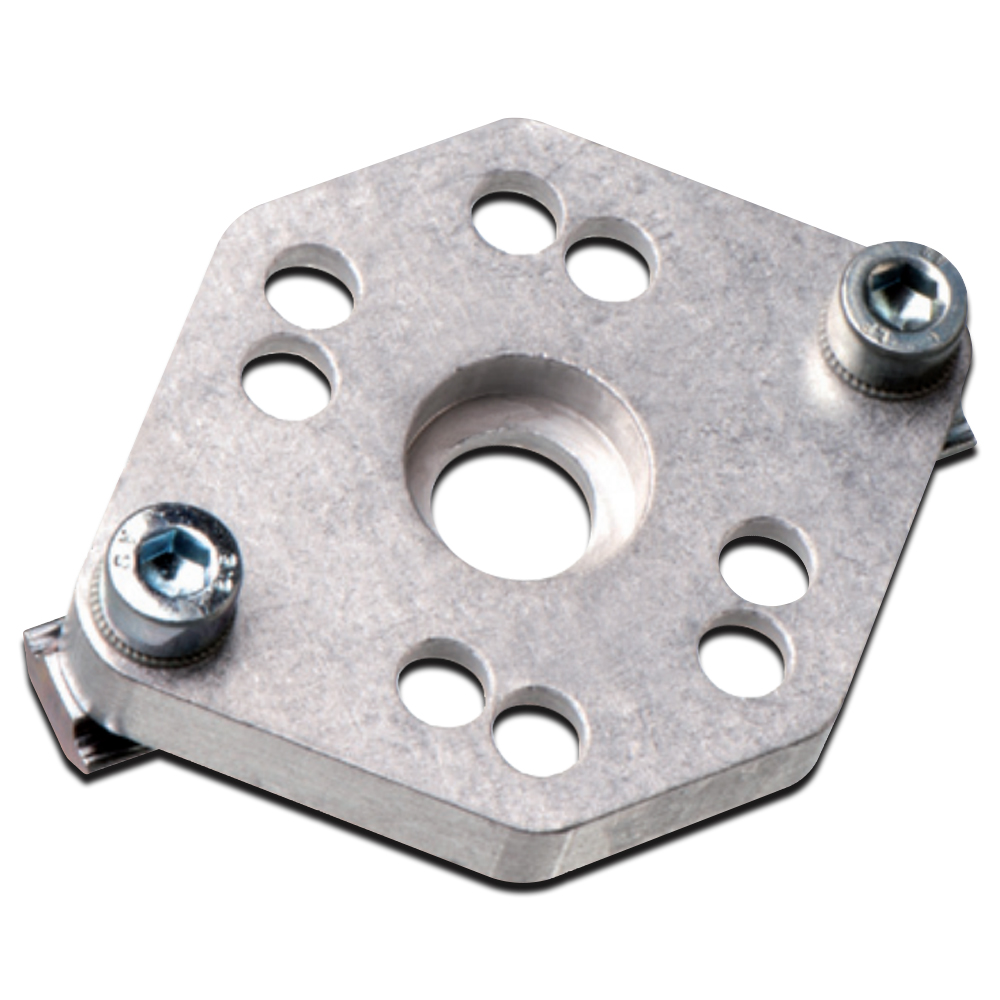

Mounting Plate for Needle Grip
