Datestamp Ø8 - 12 Months

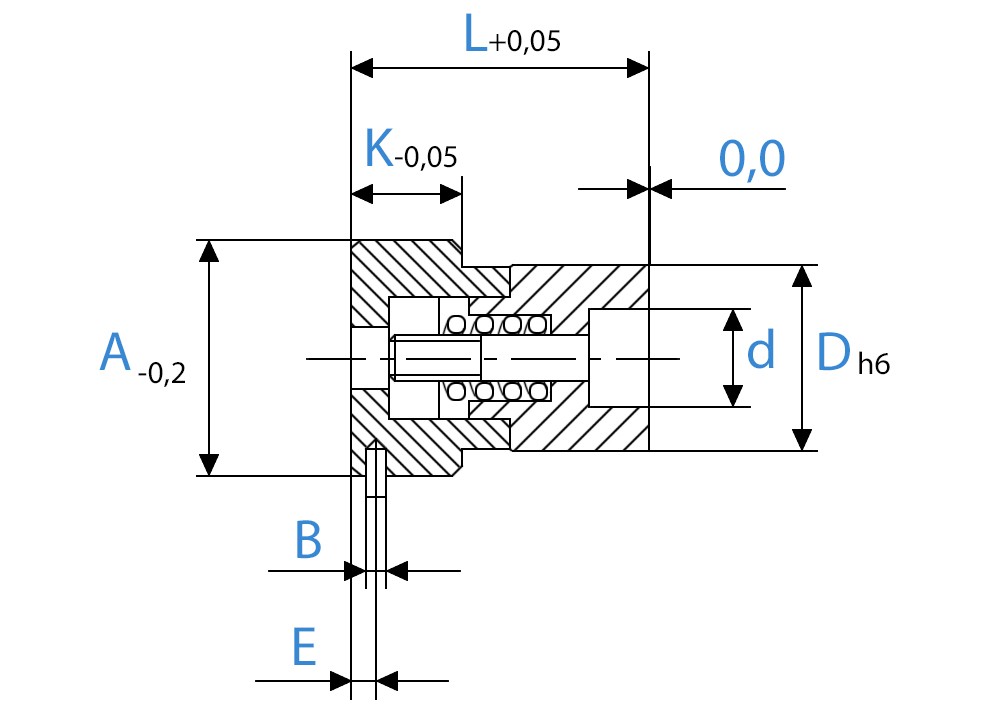

D = Ø8
d1 = 4,6
A = 12
L = 17
K = 6
E = 1,5
B = 1,5
a = 0,4
Datestamp Ø8 - 12 Months
With Flush Fixing
12 Months + Arrow
Material: (Stainless)
1.4034 Härdad HRC 56 ± 2
Item code: D2100-M8
