Fitting flexible joint G1/2-female - G1/2-male

Fitting flexible joint G1/2-female - G1/2-male
Fitting flexible joint G1/2-female - G1/2-male

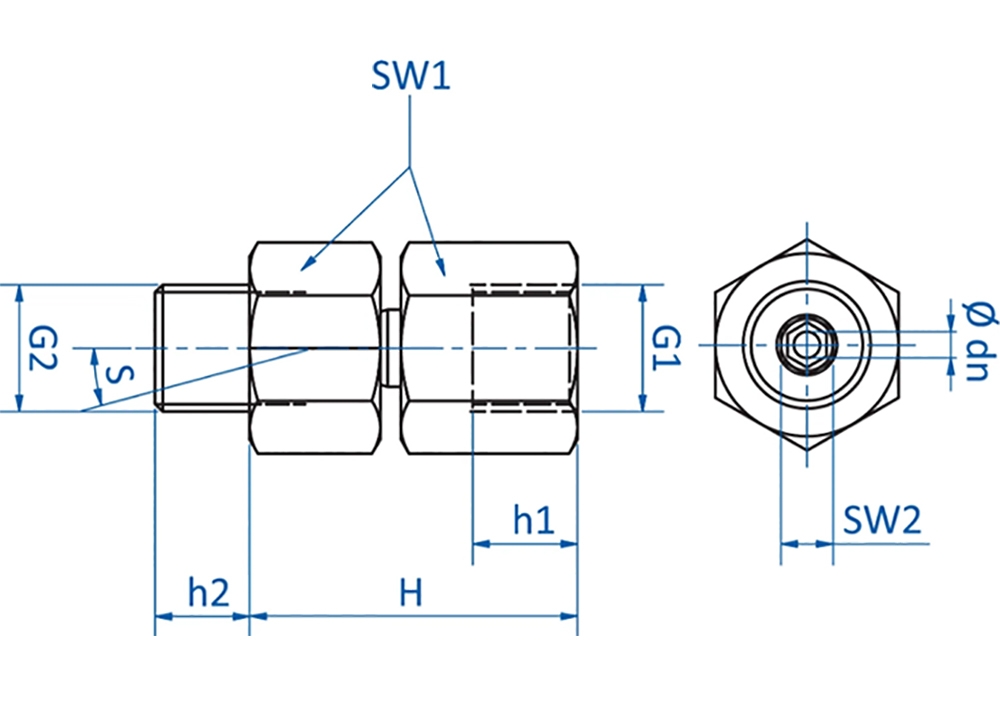

dn = Ø4
G1 = G1/2
G2 = G1/2
H = 38,5
h1 = 14
h2 = 11,5
SW1 = 24
S = 2x15°

Fitting flexible joint G1/2-female - G1/2-male

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: 270.075

For prices, apply for an account!
