Produkter »    VACUUM CUPS AND FITTINGS »    Vacuum Cups Bellows »    SBVVinylAbrasive surfaces »    1,5 Bellows »

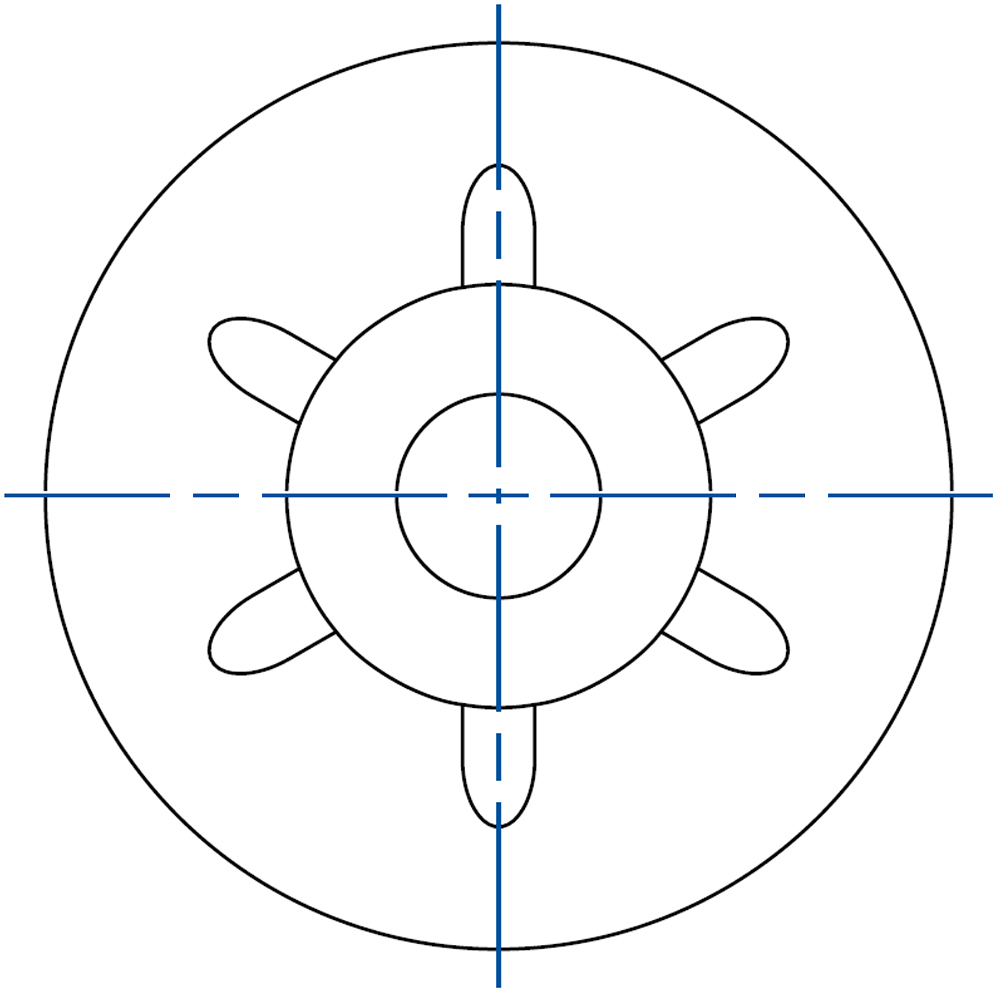

Suction Cup 1,5 Bellows - Ø31

Suction Cup 1,5 Bellows - Ø31
Sugkopp 1,5 Bälg Ø31
Suction Cup 1,5 Bellows - Ø31

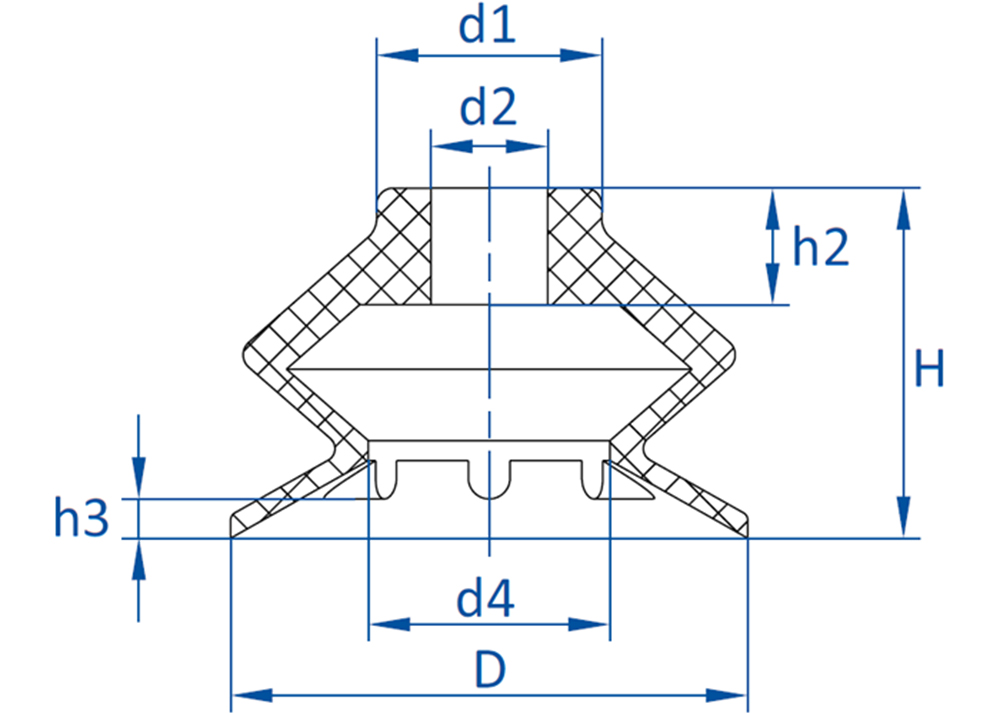

D = Ø31
d1 = Ø13,5
d2 = Ø7
d4 = Ø14,5
H = 21
h2 = 7
h3 = 2,4

Suction Cup 1,5 Bellows - Ø31

Vinyl, Wear-resistant - Stroke 6mm

Vacuum cup in vinyl for cardboard and foil-packaged goods.

CAD  Download 3D Step file

PDF  For more information please see PDF

Item code: 23.031.192.V

For prices, apply for an account!

Relaterade artiklar och tillbehör

xxx
270.275
Fitting G1/4 Female

For prices, apply for an account!
xxx
270.274
Fitting G1/4 Male

For prices, apply for an account!
xxx
270.019
Fitting G1/8-Female

For prices, apply for an account!
xxx
270.030
Fitting G1/8-Male

For prices, apply for an account!
xxx
270.312/19
Fitting M6 Male

For prices, apply for an account!
