Suction Cup 2,5 Bellows - Ø5

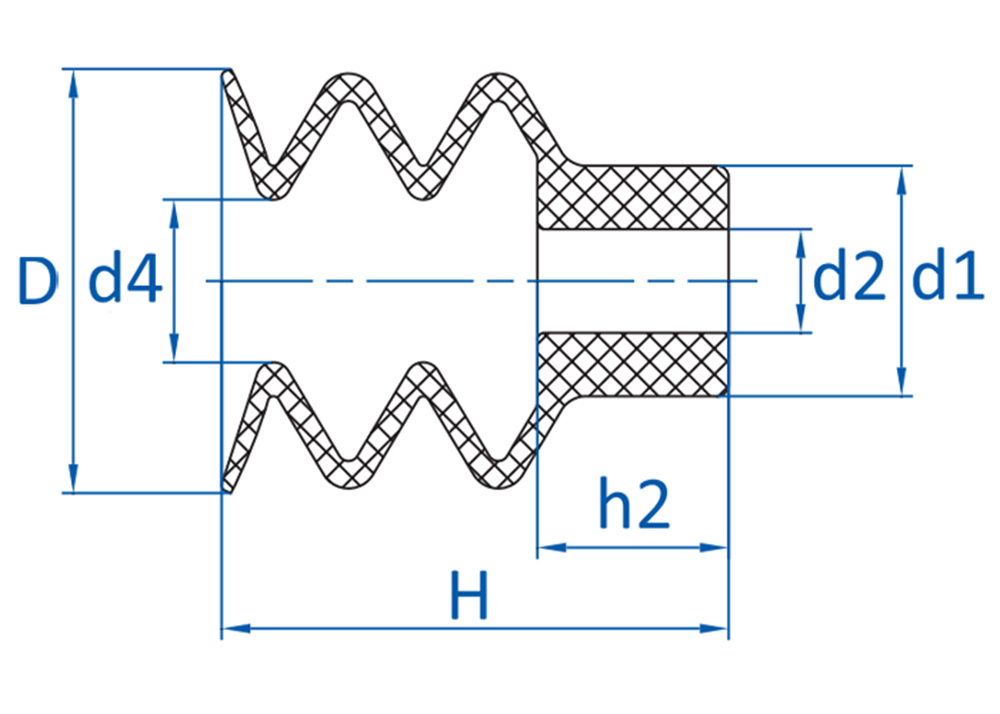

D = Ø5,5
d1 = Ø7
d2 = Ø4
d4 = Ø2,5
H = 14
h1 = 0-0
h2 = 8,5
Suction Cup 2,5 Bellows - Ø5
HNBR - Stroke: 3mm
Bellows vacuum cups for uneven surfaces
with suitability for removing hot plastic parts
to be painted from an injection molding machine.
Free of silicone
Up to 160°C (320°F) and Minimum marking.
Suitable accessories:
Download 3D Step file
For more information please see PDF
Item code: 21.005.057.14
