Suction Cup 2,5 Bellows - Ø42

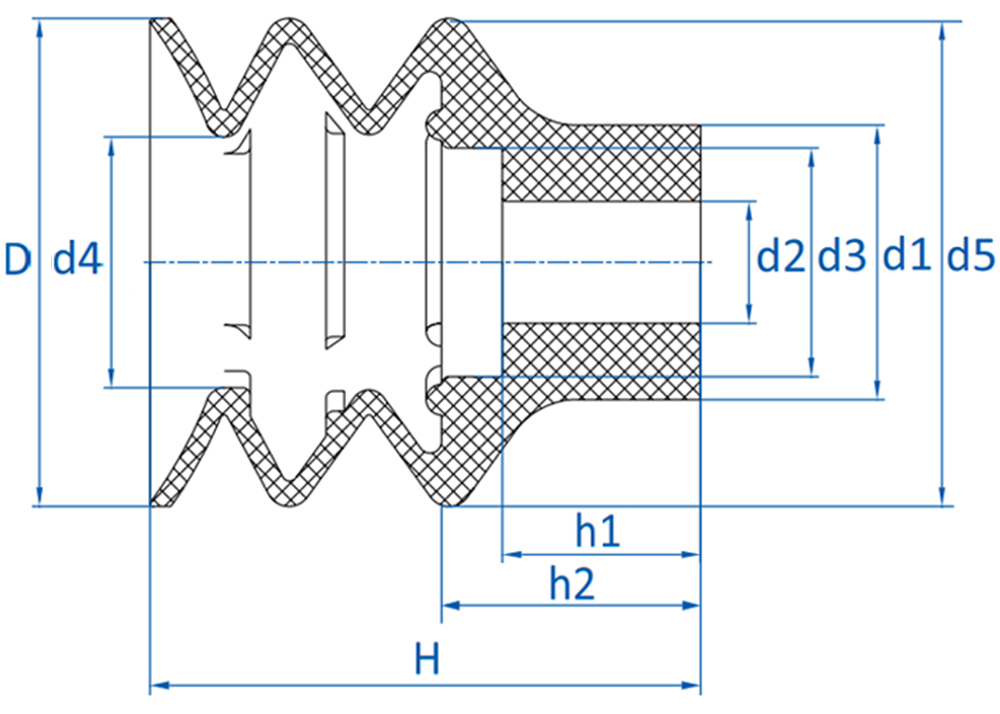

D = Ø42
d1 = Ø20
d2 = Ø8
d3 = Ø42
d4 = Ø15,5
d5 = Ø42
H = 46
h1 = 13
h2 = 17
Suction Cup 2,5 Bellows - Ø42
HNBR - Stroke: 19mm
Bellows vacuum cups for uneven surfaces
with suitability for removing hot plastic parts
to be painted from an injection molding machine.
Free of silicone
Up to 160°C (320°F) and Minimum marking.
Download 3D Step file
For more information please see PDF
Item code: 21.043.049.14
