Serie 126
Kompact »

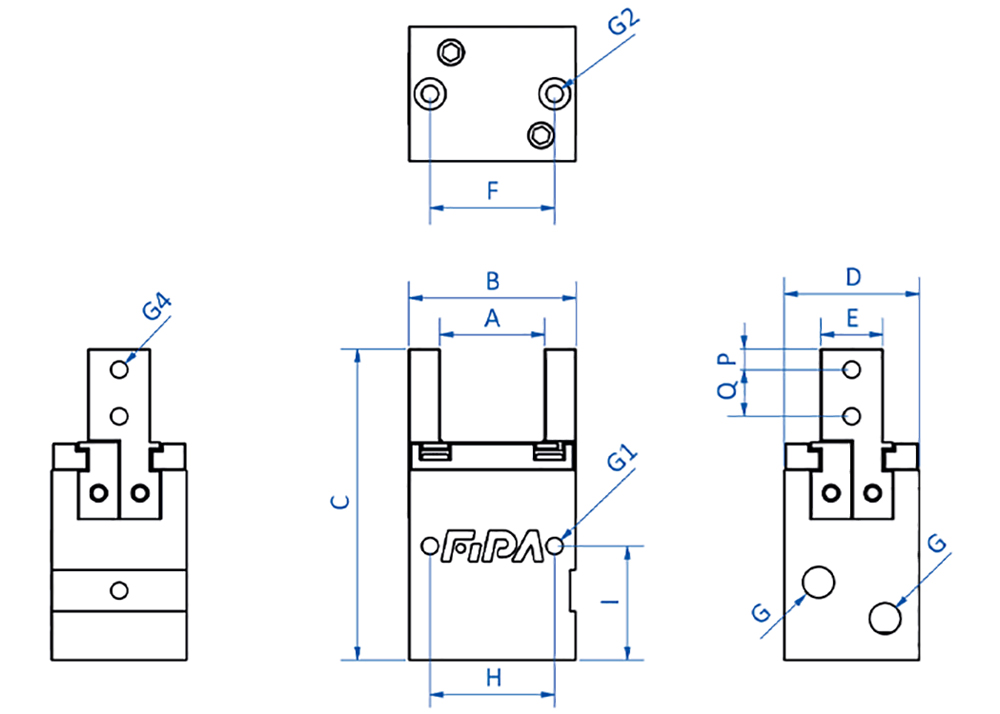

Paral. Gripper Comp. Ø8x3mm
A = 10,1
B = 16,1
C = 30
D = 13
E = 6
F = 12
G = M3
G1 = M2
G2 = M2
G4 = M3
H = 12
I = 11
P = 2
Q = 4,5
Paral. Gripper Comp. Ø8x3mm
Double-acting - Long Fingers
Parallell Gripper
Double-acting for inside/outside gripping and short duty cycles
- Operating Pressure: 1.5 bar - 7 bar
- Piston diameter: 8mm
- Stroke per gripper jaw: 1,5mm
- Closing force at 6 bar (87 psi): 11,8 N
- Opening force at 6 bar (87 psi): 12,8 N
(Jaws not included, sold seperately)
Ladda ner 3D Stepfil
For 2D and information please see PDF
Art.nr: GR04.126-08-L-N
