Long Angle Clamps
With Ball Joint »
Long Angle Clamp Ø10 L98

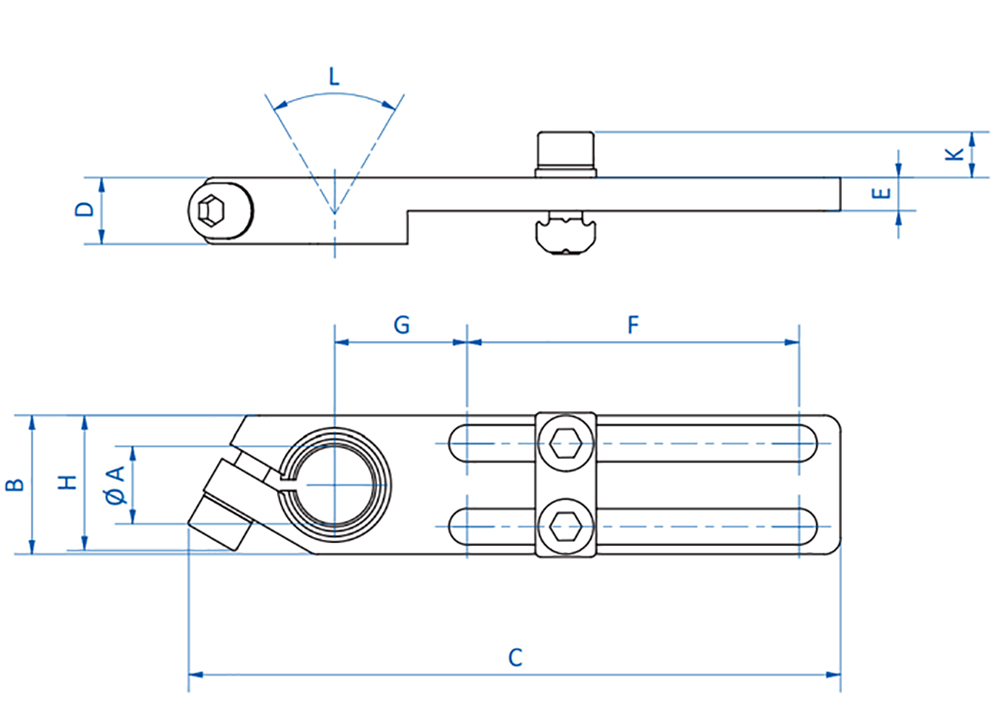

A = Ø10
B = 20
C = 98
D = 12
E = 6
F = 50
G = 20
H = 20
K = 7,1
L = 28°
Long Angle Clamp Ø10 L98
With ball joint - Mounted directly to extrusion
Suitable for: MLine
Ladda ner 3D Stepfil
For more information please see PDF
Art.nr: GR02.420
