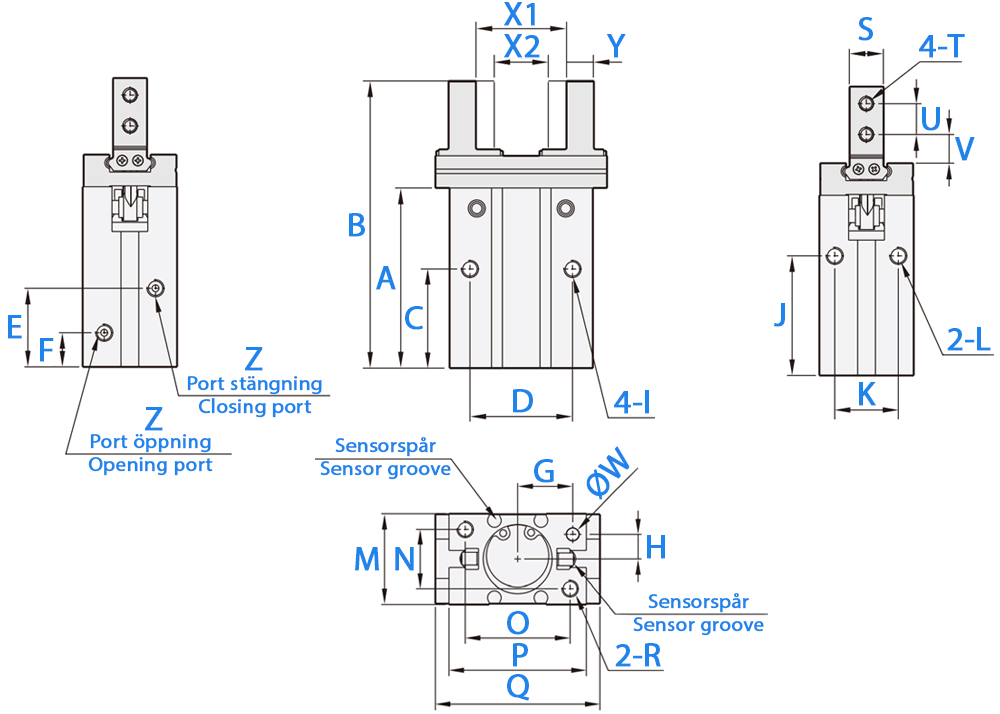

Parallel Gripper cyl.Ø10
A = 37,8
B = 57
C = 23
D = 16
E = 19
F = 9
G = 7,6
H = 5,2
I = M3xP0,5xL6,0
J = 27
K = 11,4
L = M3xP0,5xL6,0
M = 16,4
N = 12
O = 19
P = 23
Q = 29
R = M3xP0,5xL6,0
S = 5
T = M2,5xP0,45
U = 5,7
V = 4,8
W = 2
X1 = 15,2
X2 = 11,2
Y = 4
Z = M3xP0,5
Parallel Gripper cyl.Ø10
Double-act
Materialer: Alu. Stål
Download 3D - StepArt.nr: GTP10
