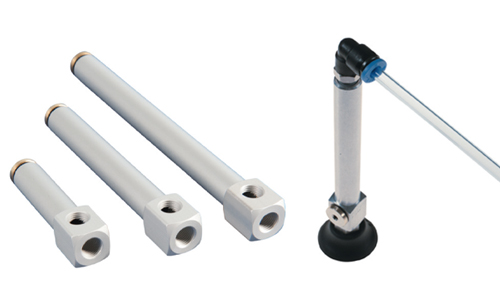

Standard suction fingers for vacuum cups,
rigid without spring function.
Smooth round surface makes the suctions fingers,
easy to install using various clamping fittings.
Advantages:
-
Two vacuum ports plus connection
-
Simple design

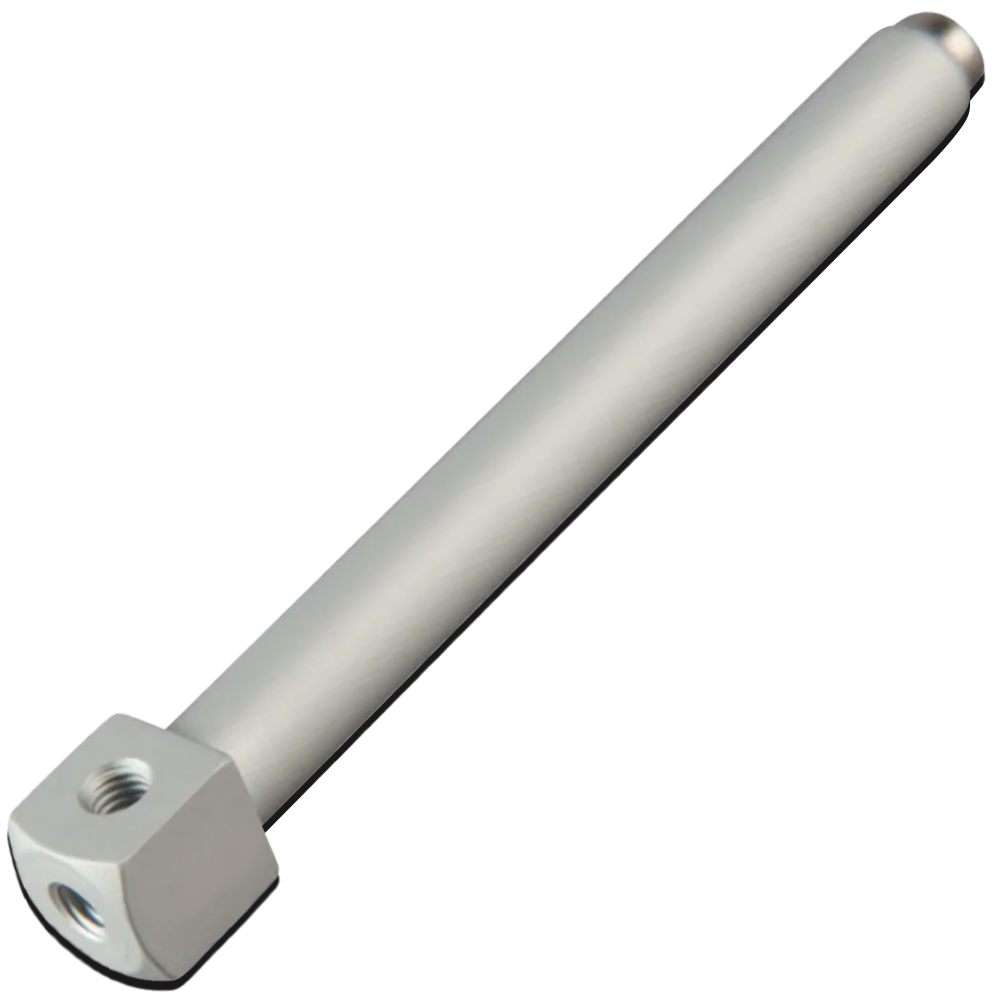

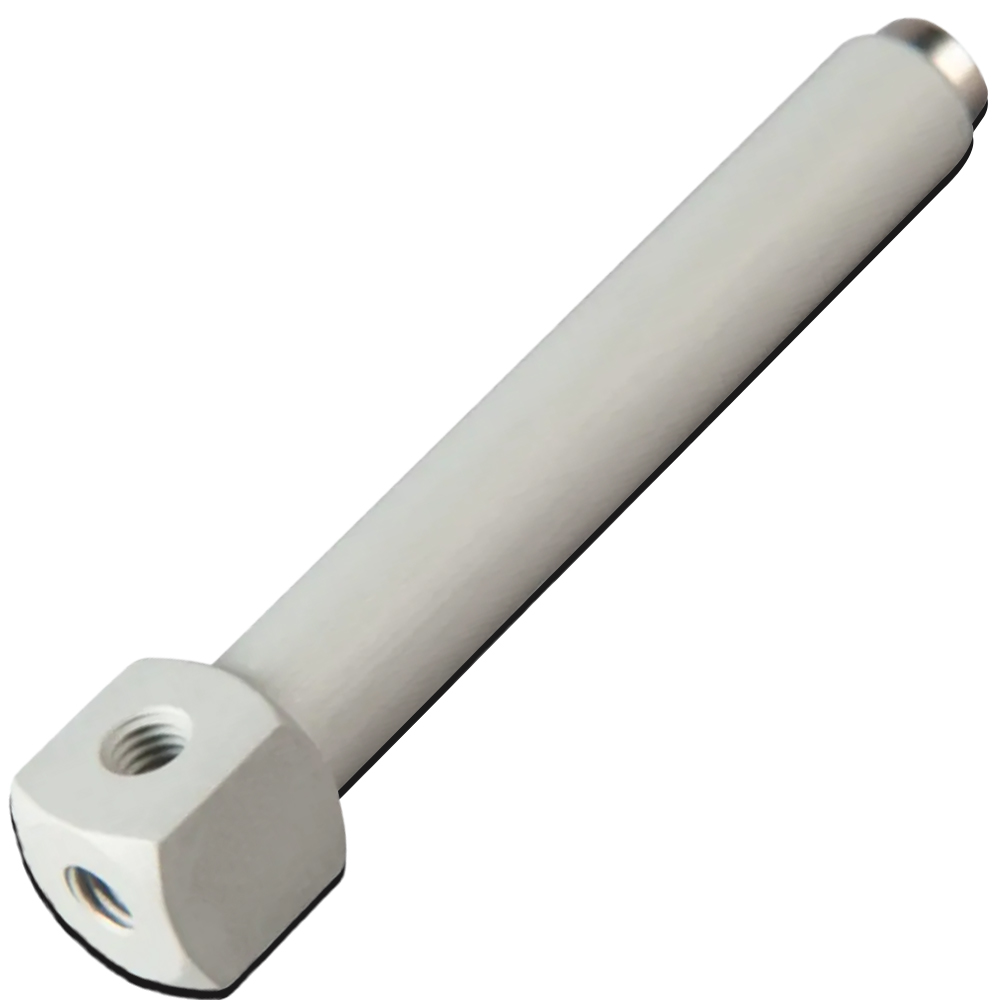

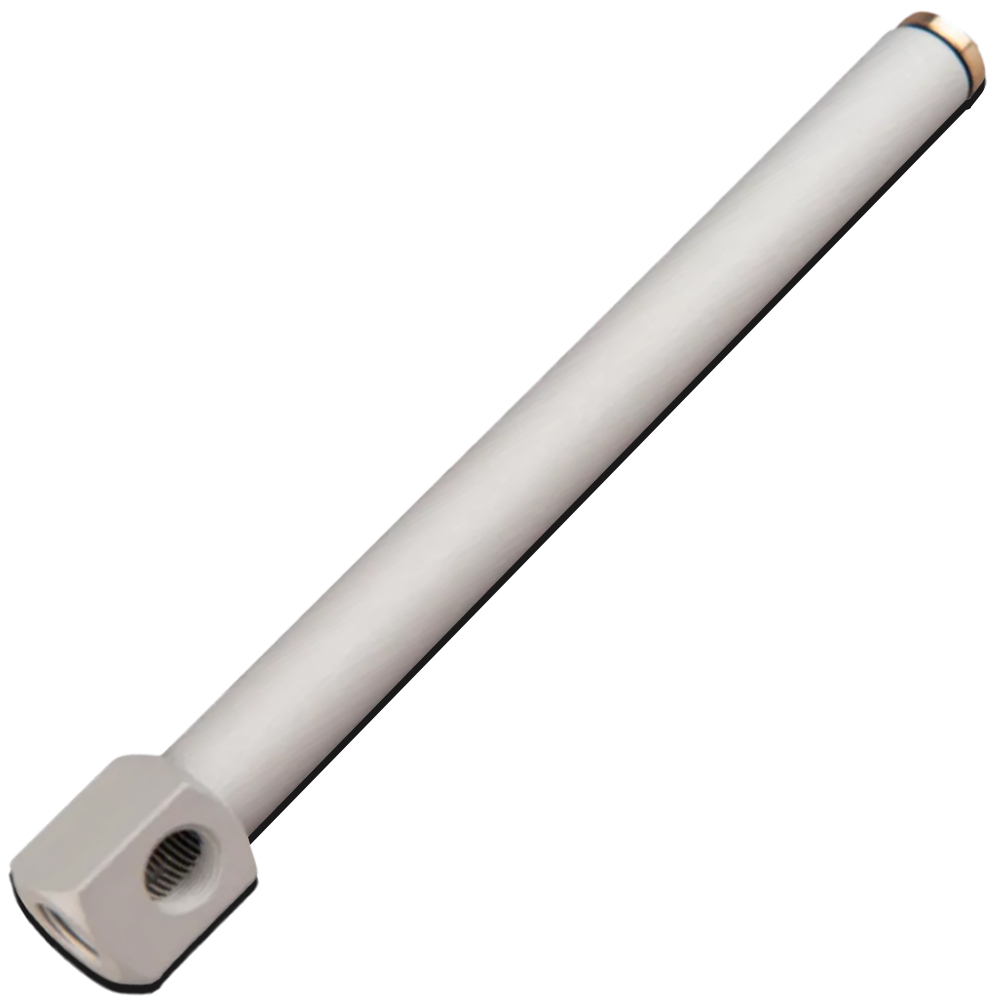

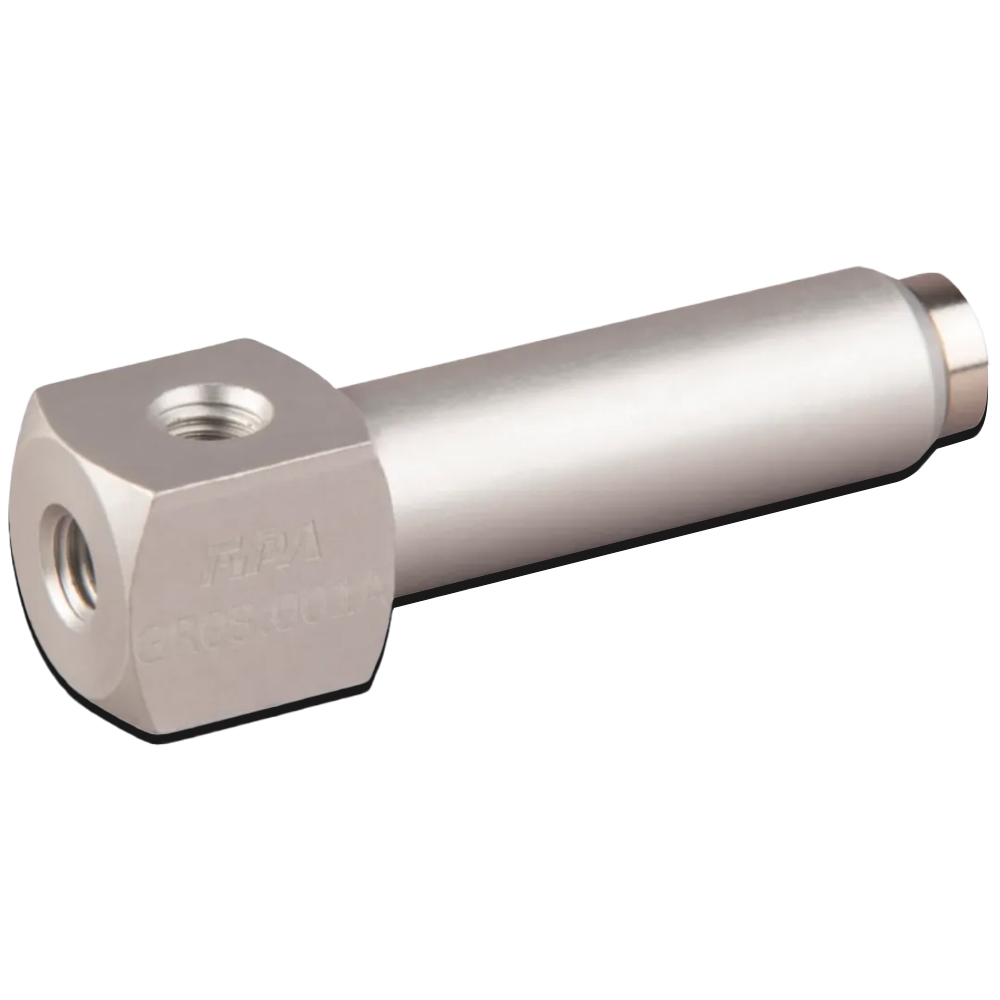

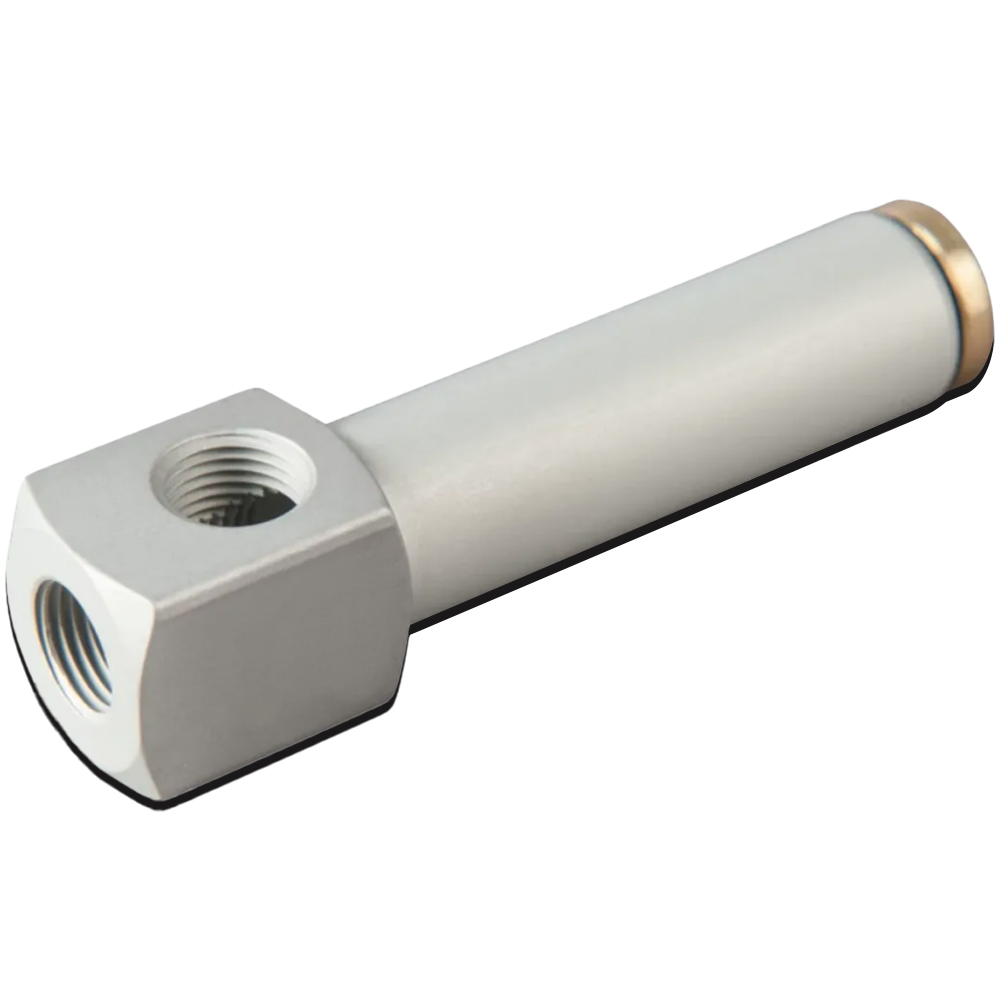

Suction Finger Straight Ø10, Length 30mm
Without Spring, For M5 - M5

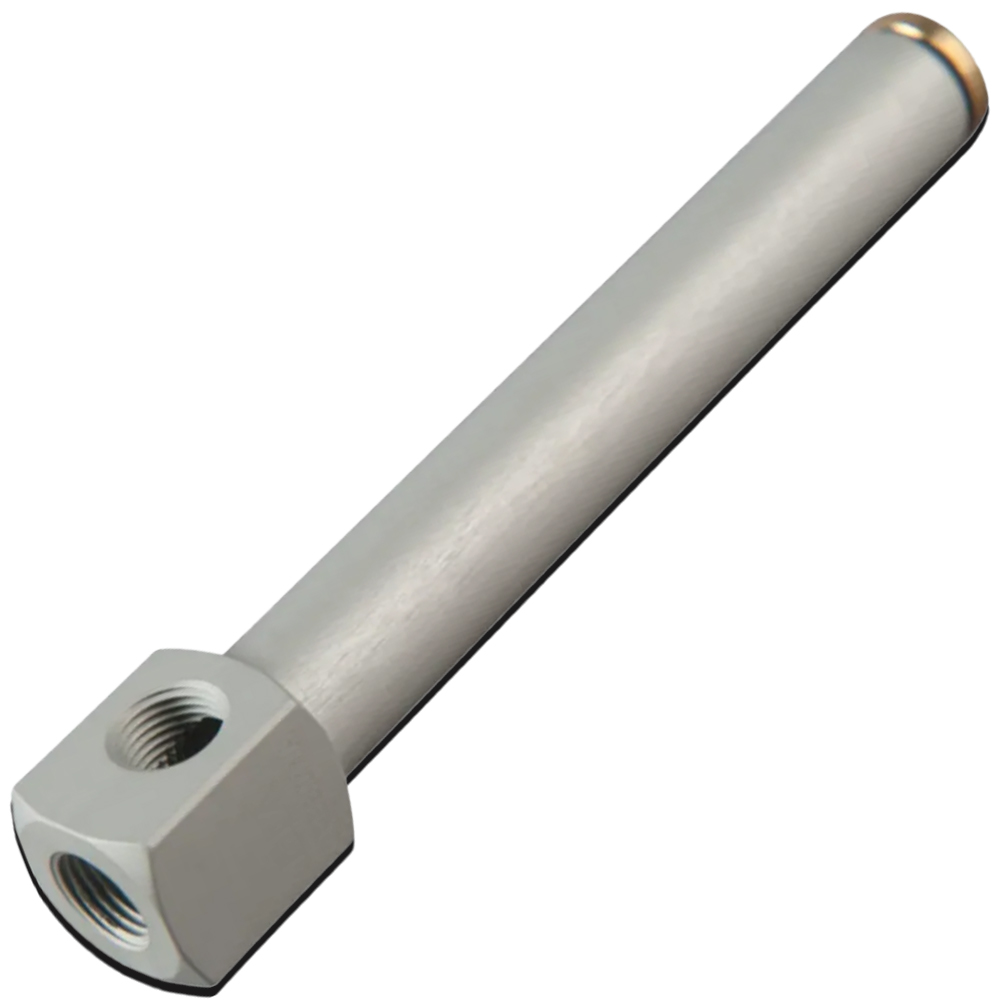

Suction Finger Straight Ø10, Length 60mm
Without Spring, For M5 - M5
Suction Finger Straight Ø10, Length 90mm
Without Spring, For M5 - M5
Suction Finger Straight Ø10, Length 30mm
Without Spring, For M5 - M5 - G1/8
Suction Finger Straight Ø10, Length 60mm
Without Spring, For M5 - M5 - G1/8
Suction Finger Straight Ø10, Length 90mm
Without Spring, For M5 - M5 - G1/8

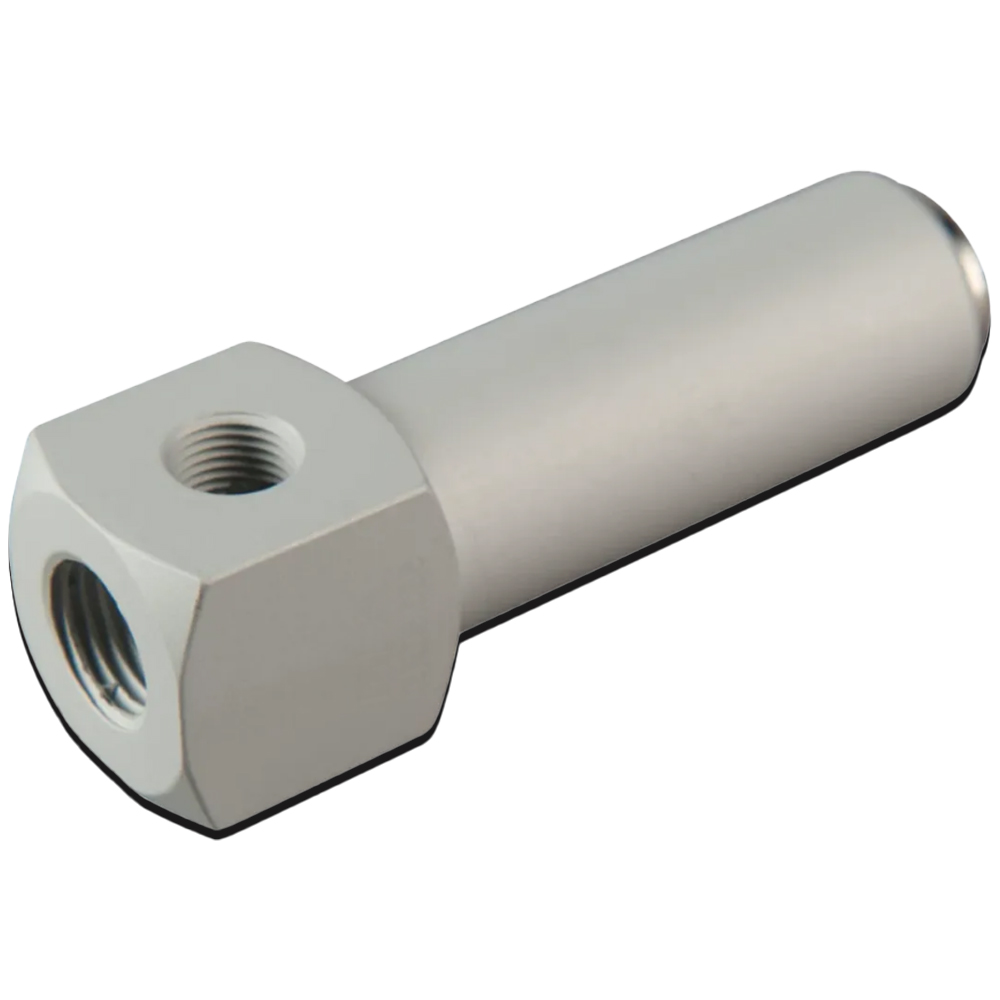

Suction Finger Straight Ø14, Length 45mm
Without Spring, For G1/8 - G1/8

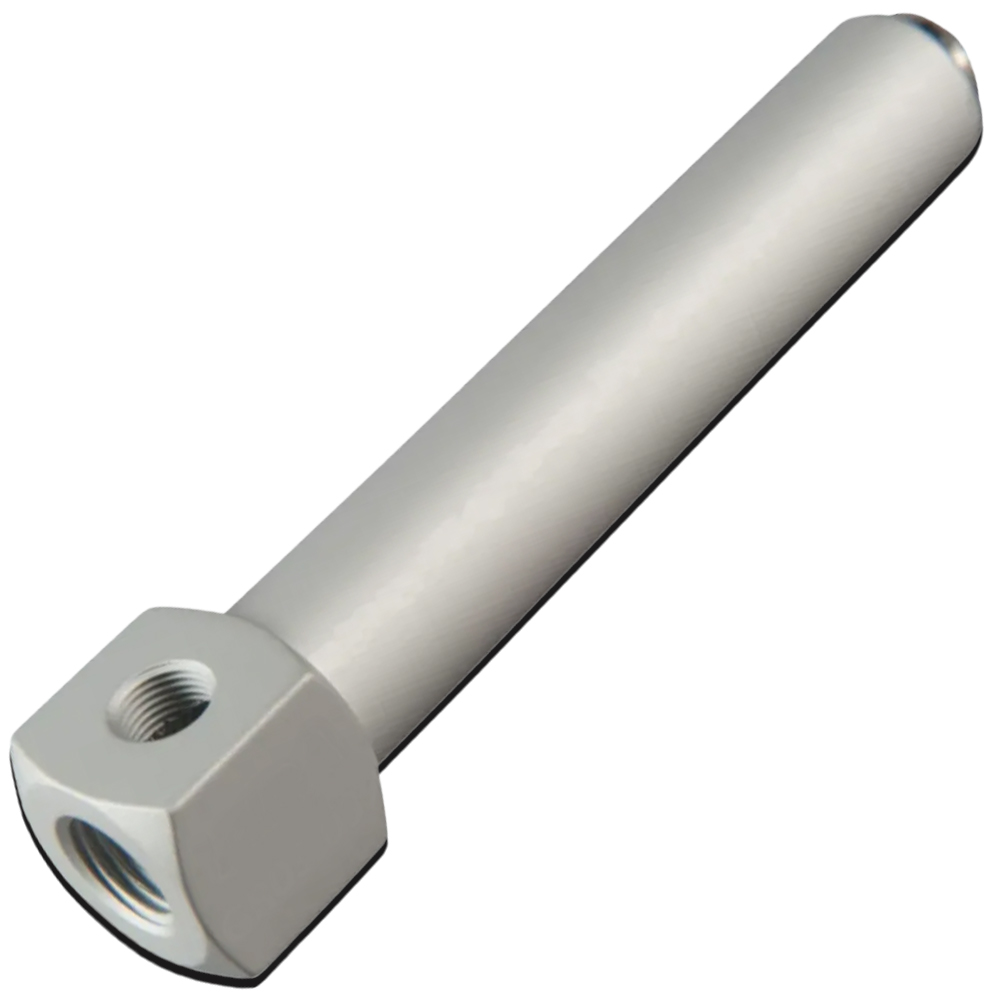

Suction Finger Straight Ø14, Length 90mm
Without Spring, For G1/8 - G1/8
Suction Finger Straight Ø14, Length 130mm
Without Spring, For G1/8 - G1/8

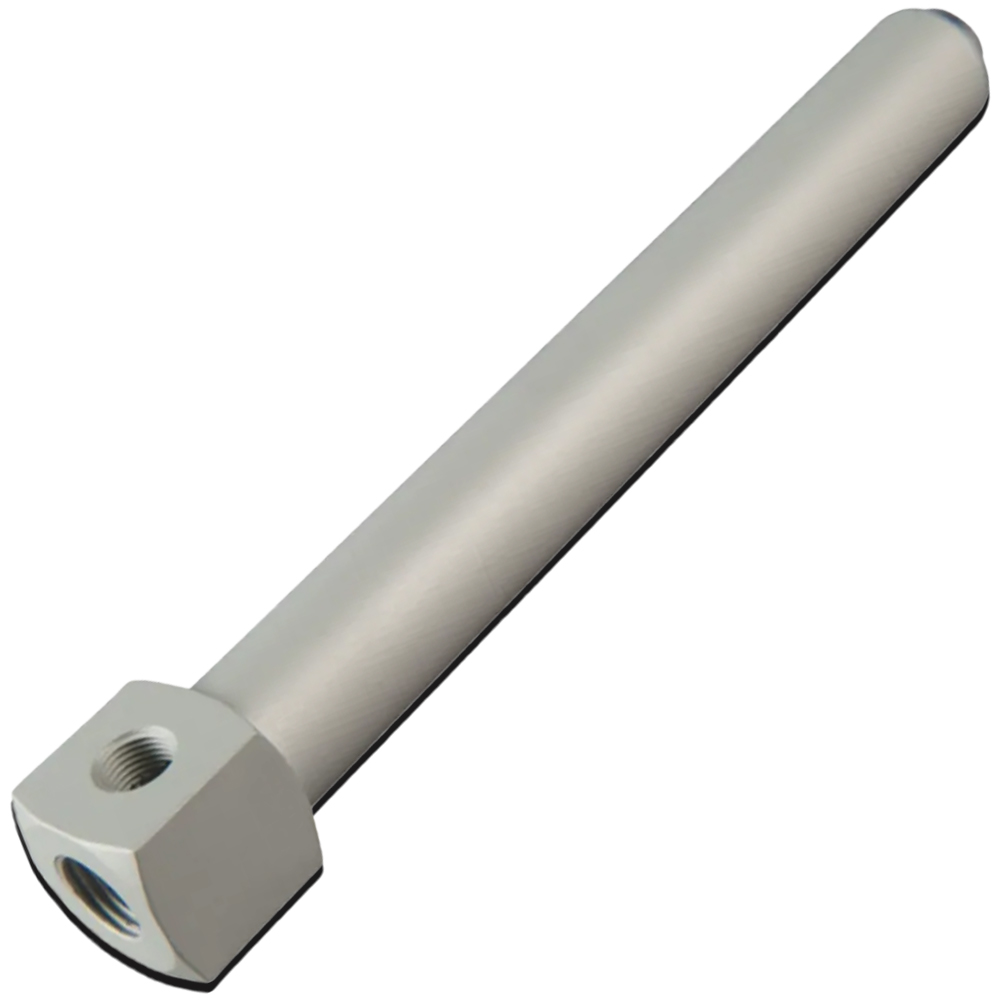

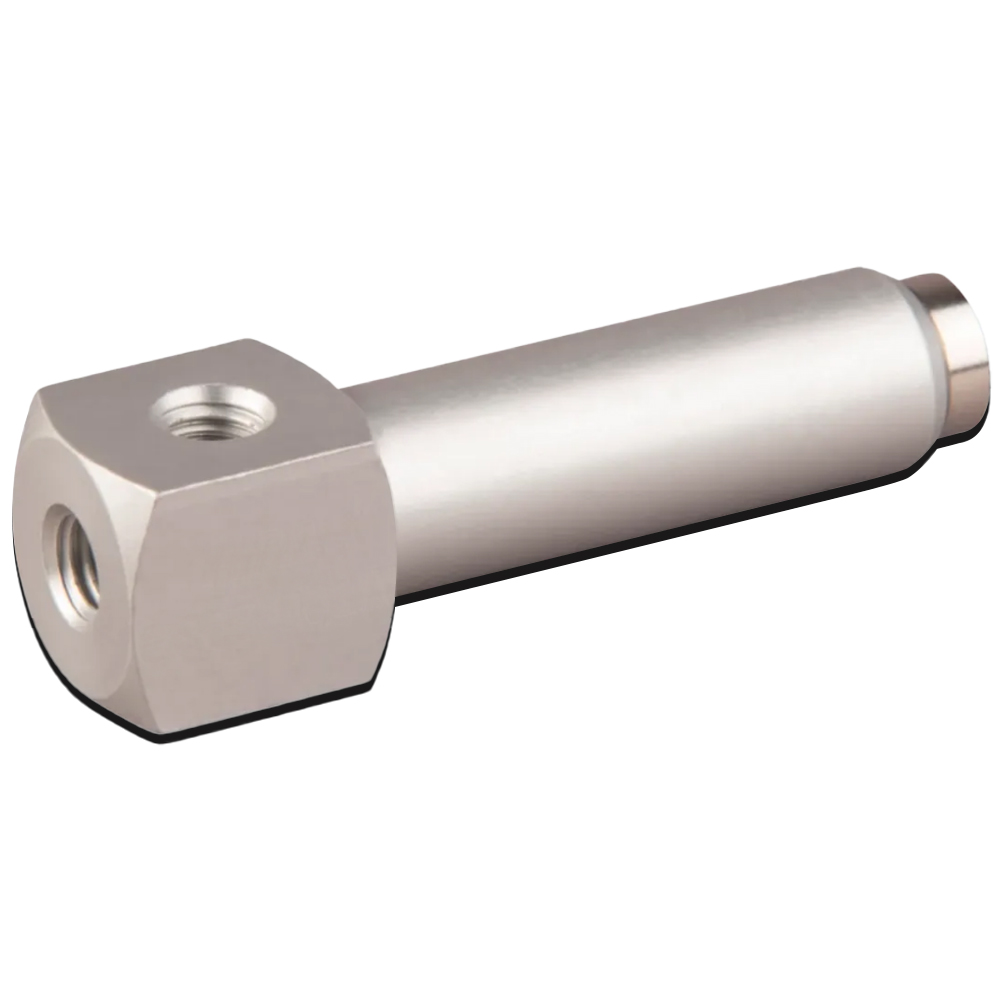

Suction Finger Straight Ø20, Length 50mm
Without Spring, For G1/8 - G1/8 - G1/4
Suction Finger Straight Ø20, Length 100mm
Without Spring, For G1/8 - G1/8 - G1/4
Suction Finger Straight Ø20, Length 150mm
Without Spring, For G1/8 - G1/8 - G1/4

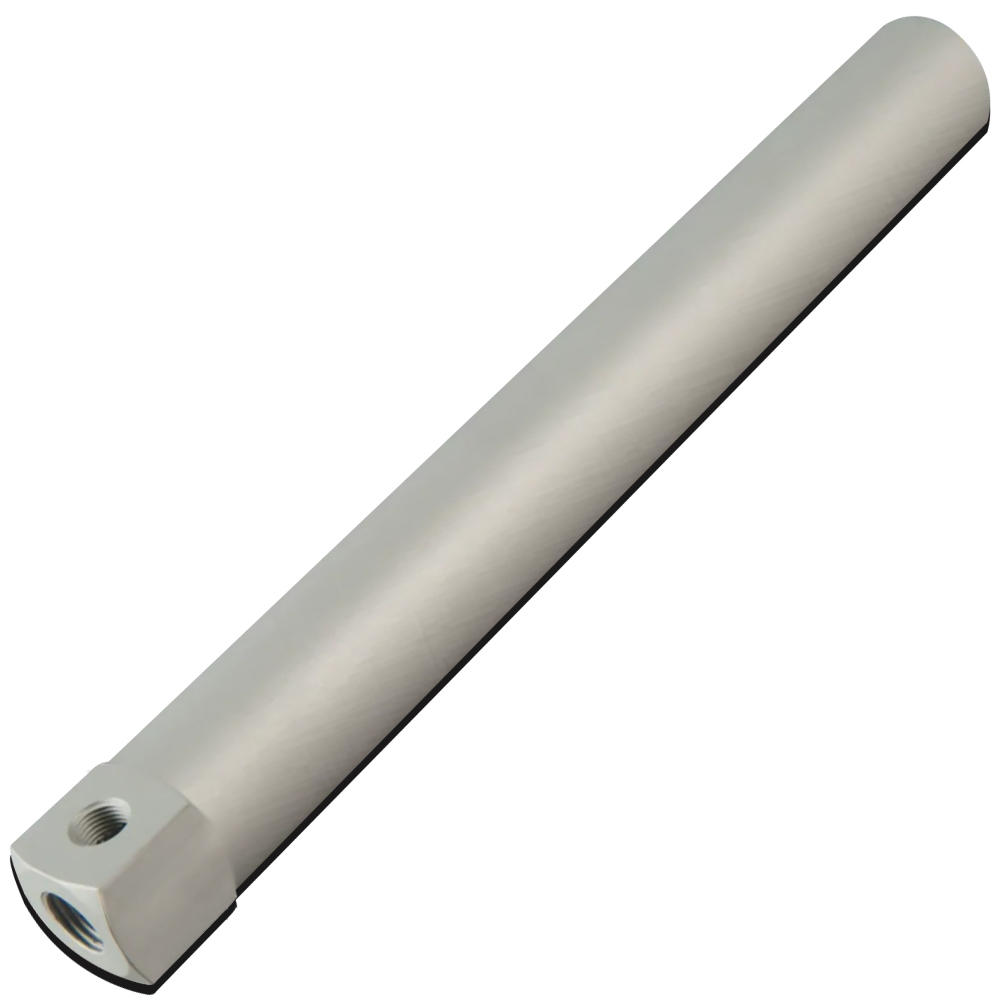

Suction Finger Straight Ø30, Length 200mm
Without Spring, For G1/4 - G1/4
